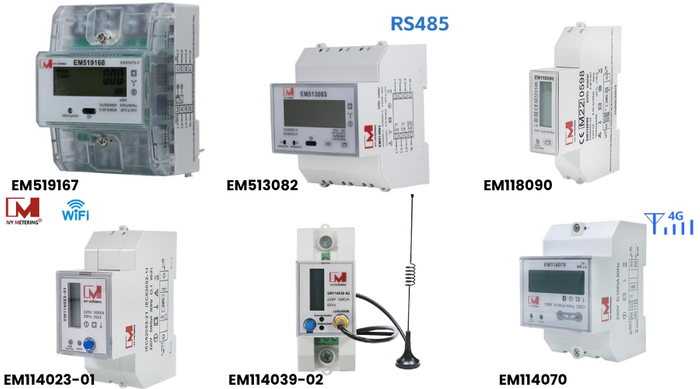

The EM519167 is a high-precision (Class 1) three-phase smart meter designed for accurate energy measurement. Operating at 3x230/400V and 5(80)A, this meter supports bi-directional active energy metering and complies with the latest MID standards. It features RS485 communication for remote data acquisition, a built-in battery for power outage display, a convenient backlight for easy reading, and is designed for simple DIN rail installation.

Key Features Accuracy: Class 1 precision. Voltage and Current: 3x230/400V, 5(80)A.

Metering Functionality: Supports active forward and reverse energy measurement (Bi-directional).

MID Compliance: Meets the latest MID standards.

Communication: Integrated RS485 for remote data access.

Power Outage Feature: Built-in battery for display during power loss.

Readability: Backlight for clear display in various conditions.

Installation: DIN rail mounting for easy installation. What's dual power source A dual power source electricity meter is an advanced type of meter designed to measure the electrical energy used from two distinct power supplies.

These two sources could be: The main utility grid and a backup generator. This is a common application.

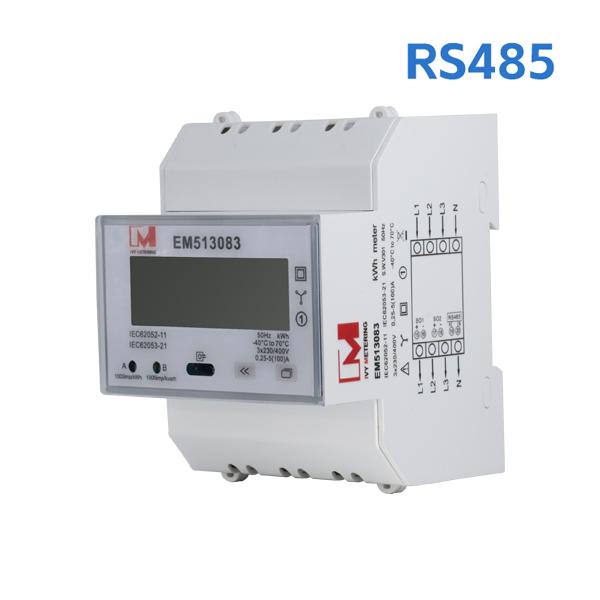

The EM513082 is a reliable Class B three-phase smart meter providing precise measurement of both active and reactive energy. With a voltage rating of 3x230/400V and a current range of 5(100)A, this meter supports both forward and reverse energy measurement, ensuring comprehensive monitoring.

Compliant with EN50470-1/3 requirements, it offers versatile RS485 communication, seamlessly supporting both the widely adopted Modbus protocol and the DLT645 protocol, enabling easy integration into various monitoring systems. The inclusion of a built-in battery ensures data integrity during power interruptions, and the integrated tariff function allows for multi-rate energy billing. Its compact design allows for simple DIN rail mounting. Features of our Bidirectional meter Din Rail Mounted Direct connection Bidirectional energy metering Active/reactive energy and forward and reverse measurement

The EM118089-118091 series is a 100A single-phase rail-mounted meter, and is also a multi-functional energy monitoring meter. It is only 18mm wide, supports RS485 communication, complies with MID certificate & DIN EN 50022 standards, and is suitable for domestic and commercial power distribution systems. 1-phase, 2-wire, tariff, MID compliance. EM118089/90/91 is electronic, compliant with the MID Directive, single-phase electricity meter, designed for measurement in a 2-wire direct system.

Multi-functional: Measures a wide range of electrical parameters, including active and reactive power, energy, and demand.

Communication: Supports RS485 communication for remote data retrieval and configuration.

Compact and Durable: Small footprint, standard din rail mounting, and suitable for indoor use.

Compliance: Adheres to international standards like EN50470-1/3, IEC62052-31, IEC61010-1, and IEC62052-11.

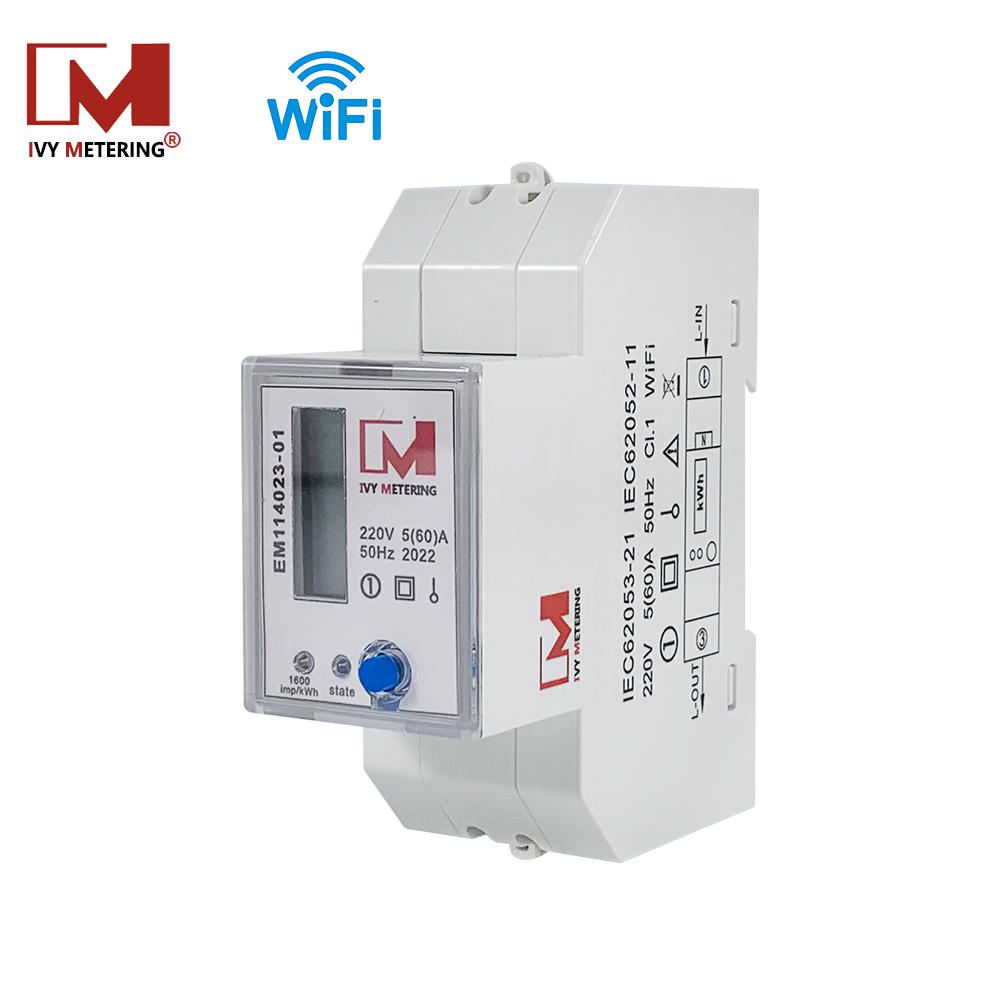

EM114023-01 is designed to measure single-phase two-wire AC active energy and variable parameters. All of its functions comply with the relative technical requirement for class 1 single-phase watt-hour meter in IEC62053-21. The WIFI communication rule obey the requirement of 802.11b/g/n.It is a long-life meter with the advantage of high stability, high overload capability, low power loss, and small volume. Functions Descriptions Measurement of remaining energy and total energy, active power, power factor, frequency, voltage, current Green light indicator to reflect normal or abnormal network. Built-in 60A Latching Relay can trip when overload or balance runs out. Remote reading data or setting parameters.

Three modes of managing communal electricity charges: "

1. "total electricity equally divided by the number of rooms used"

2. "total electricity divided by the proportion of electricity used by each household"

3. "other sharing amount according to the agreement between the landlord and the tenant”

Technical Parameters Impulse Constant 1600imp/kWh Temp. Range -20~70℃. Annual Average Humidity 75%. Maximum Humidity 95%. Frequency 50Hz. Accuracy Class Class 1 Starting Current 0.4%Ib. Power Consumption <2W / <10VA @ Un

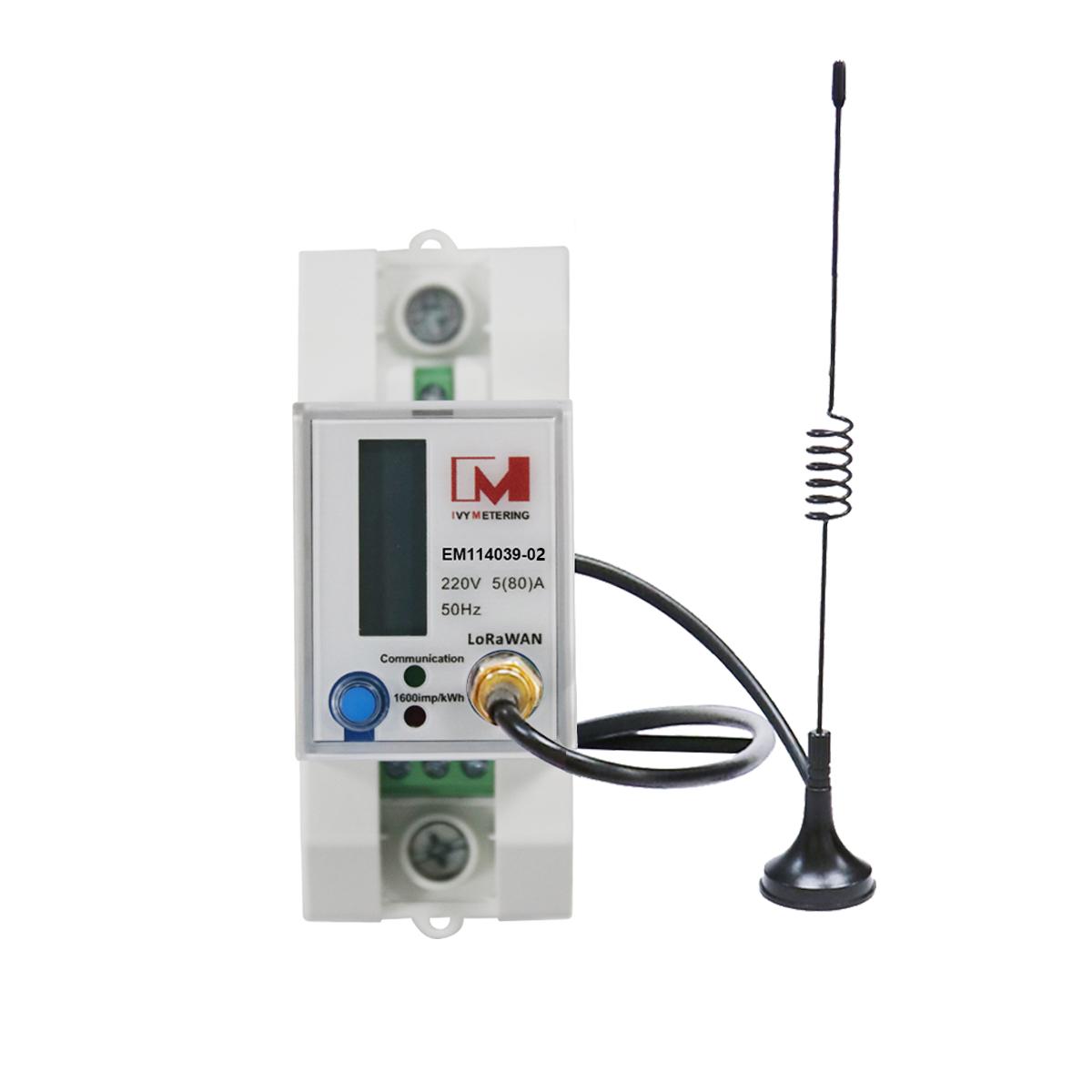

Ivy Metering brand single-phase LoRaWAN prepaid energy meter with the AS923-2-Indonesia-LoRaWAN AS923 (923-925) frequency plan offers a compelling solution for smart metering applications, providing long-range, low-power, secure, and cost-effective data transmission. It is particularly well-suited for remote areas and applications that require a large number of devices. Product Introduction EM114039 series- our advanced Single-Phase DIN Rail LoRaWAN Meter, specifically designed for smart energy monitoring and management in regions utilizing the AS923 frequency band. This compact and easy-to-install meter seamlessly integrates into standard DIN rail setups, providing accurate and reliable measurement of single-phase electricity consumption. Leveraging the long-range, low-power capabilities of LoRaWAN technology on the AS923 spectrum, this meter enables cost-effective and wide-area data transmission to your network server. Ideal for residential, commercial, and industrial sub-metering applications within the AS923 regulatory environment, it facilitates efficient energy data collection for billing, analysis, and optimization. Experience the benefits of secure, long-range wireless communication with our Single-Phase DIN Rail LoRaWAN Meter, operating on the optimized AS923 frequency for your region. Why As923 and

Which country adopts AS923MHz? LoRaWAN operates in the unlicensed ISM (Industrial, Scientific, and Medical) bands.

AS923 Frequency Plan Advantages: Regional Specificity: The AS923 frequency plan is specifically allocated for LoRaWAN in the Asia-Pacific region, ensuring minimal interference from other wireless technologies.

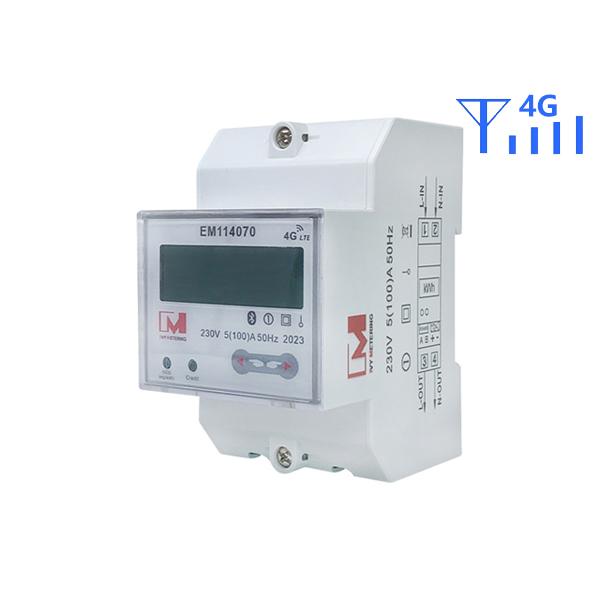

EM114070 is a single-phase three-module prepayment electronic energy meter. it is a versatile device designed to measure total electricity consumption, voltage, line current, neutral current, active power, power factor, ambient temperature, and line temperature. It also displays date, time, version number, CCID, 4G frequency band and signal, 4G operating status, and forced closing status. The meter features an LCD display with scrolling data and can be manually flipped through pages using buttons. Supporting both RS485 local communication and 4G wireless communication, the meter allows for remote reading of meter parameters. It is equipped with an SO pulse output interface and adopts a compact, standard DIN rail installation method.

Why Choose us Intelligent: 4G remote meter reading, remote control, real-time data update.

Convenience: Bluetooth connection, mobile APP operation, query electricity information anytime and anywhere.

Safety: Automatic tripping when over-power and balance exhaustion are exhausted to ensure the safety of electricity consumption.

Versatility: Measure a wide range of electrical parameters to meet different needs.

Easy to install: Compact size, standard rail mounting. Key information single-phase three-module prepayment electronic energy meter 4G communication, IoT module IDIS Protocol remote meter reading remote recharging Bluetooth connectivity Technical Parameters Impulse Constant 1000imp/kWh Temp. Range -20～75℃ Frequency 50Hz Accuracy Class Cl.1.0 Starting Current 0.4%Ib Power Consumption <2W / <10VA Relative Humidity ≤75% Reference Standards IEC62052-11:2020；IEC62053-21:2020 Module CAT 4

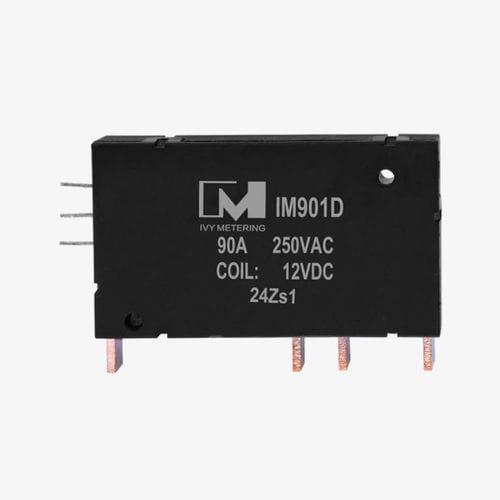

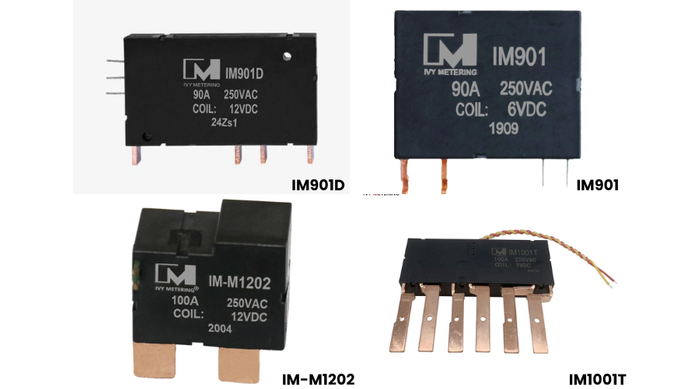

Magnetic latching relays are key components in today's smart power meters, where they are used to facilitate the remote disconnection and reconnection of power to the consumer premises. IM901D 2-pole relay is a bistable latching relay with MAX current up to 90A, and switching 90A 250VAC. Single and Double coil type. Widely Used in smart meters, solar, EV charger, street lighting control system, and industrial automation. IM901D's outstanding advantages are the following 2 points: 1.Price: best cost-effective, one 2-pole IM901D relay < two 1-pole relay 2.Low contact resistance: 100% Guaranteed ≤0.8mΩ, Batch testing: 0.3mΩ. Product Feature Small size, strong load and low power consumption. Coil instantaneous pulse driving and without fever low contact resistance, working stable and reliable. 4kV dielectric strength between coil and contacts. Custom assemblies available with flex wire and/or copper straps, and/or with ct shunt IEC62055-31 UC2/UC3 Standard Product Parameters Contact Form: 2A/B

Contact Material: AgSnO2 Max.

Switching Voltage: 250VAC Max.

Switching Current: 90A Max.

Switching Power: 22500VA

Coil Voltage: 6~48VDC

Contact Resistance: ≤0.8mΩ

Pick-up Time: 30ms

Release Time: 30ms

Electrical Endurance: 10000 Cycles

Mechanical Endurance:100000 Cycles

Temp.Rise: ≤55K

When Ambient 40℃ Application Scenarios:

1) Smart meters: IC card meters, prepaid meters, single-phase meters, three-phase meters.

2) Reactive power compensation: synchronous switch, composite switch, smart capacitor.

3) Intelligent control: smart home, solar street light control, automation equipment, etc.

4) New Energy Field: EV charger, PV Inverter

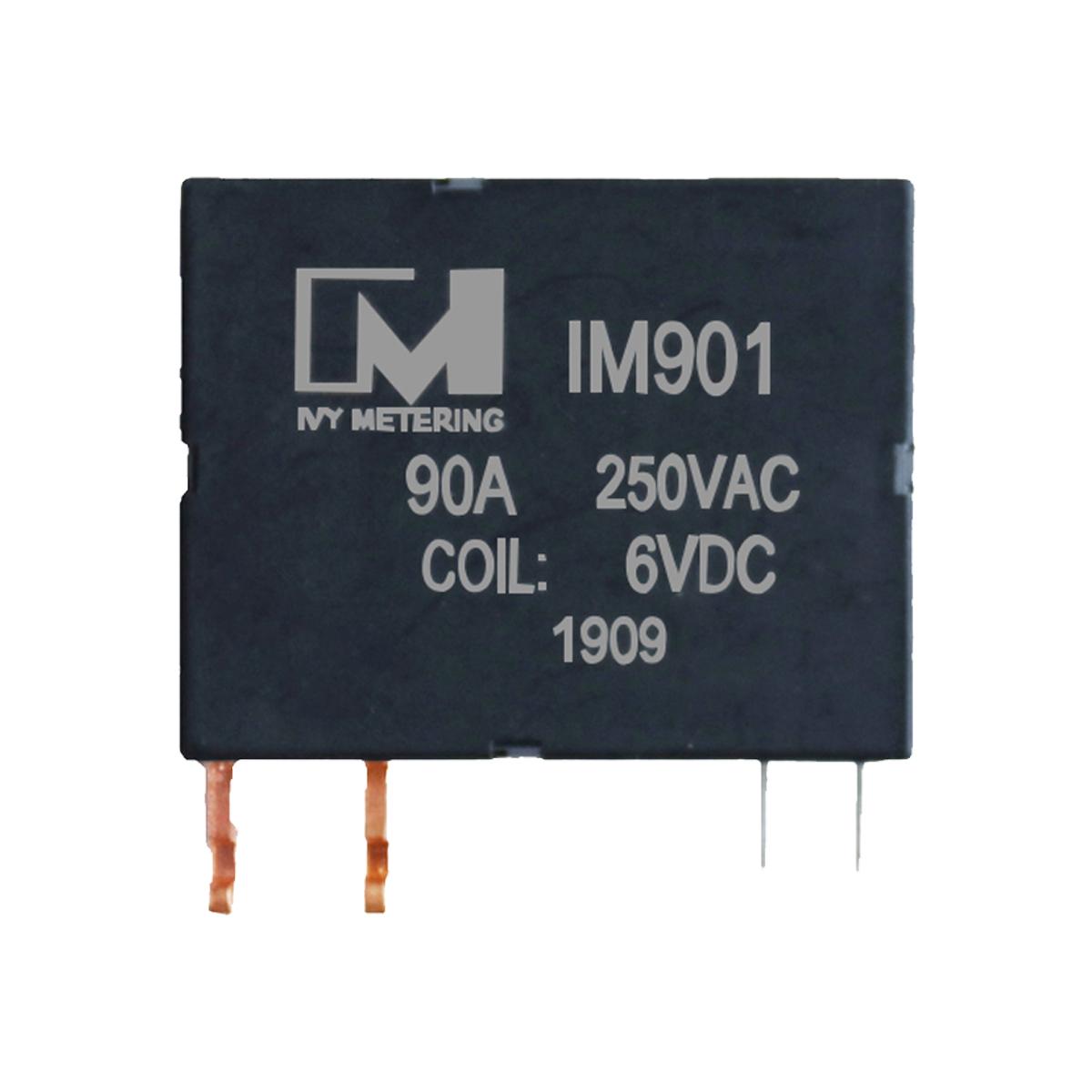

Latching relay is a new type of relay which uses magnetic principle to control circuit's on and off. Its normally open and closed state are provided completely by permanent magnet steel'working and completed the conversion of on-off state base on the triggering of a certain width pulse signal. We are a leading Supplier of Relay - IVY. We are supplying latching relays(magnetic latching relays and motor latching relays), power relays, and new energy relays(EV charger relays and PV inverter relays). IM901 is a 90A low power consumption AC latching relay with stable performance and long service life.

The bistable relay has following characteristics: Cost Efficiency & Surge Protection; Single Coil Double Coil Optional; External Shielding Case Available; RoHS Compliant Materials and Process; Custom Assemblies with Integrated Shunts, Flex-wire and Copper Extensions and Brass Terminals. It's also passed IEC62055-31 UC3 Certified.

This relay is widely used in Smart Meter, Lighting Control, UPS Control, EV Charging Station, Solar PV System and Industrial Equipment. Benefits High-Capacity Control Takes Up Less Board Space Easier Assembly For High-Volume Projects Low Power Operation Meets VDE0126 and EN61810-1 Environmentally Friendly Product Parameters Contact Form: 1A/B

Contact Material: AgSnO2 Max.

Switching Voltage: 250VAC Max.

Switching Current: 90A Max.

Switching Power: 22500VA

Contact Resistance: <2mΩ

Pick-up Time: 20ms

Release Time: 20ms

Electrical Endurance: 10000 C

ycles Mechanical Endurance:100000 Cycles T

emp.Rise： ≤55K When Ambient 40℃

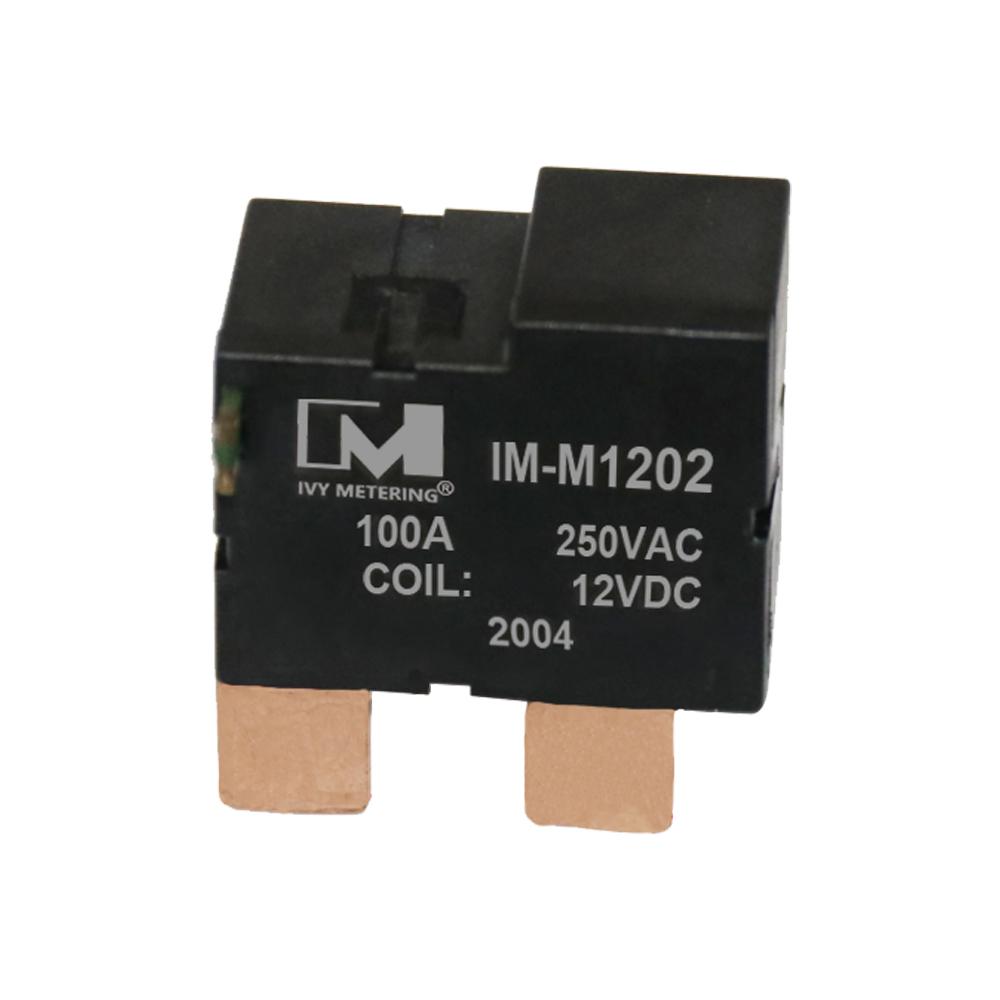

IVY specializes in the development and manufacturing of high-quality latching relays. We offer a line of latching relays spanning from 60A to 200A for single-phase, two-phase and three-phase switching purposes. our relays meet the industry's highest performance standards and offer the best value in the energy management market. In particular, we have developed an innovative relay switch-motor latching relay. Compared with similar latching relays, IVY's motor latching relays with 500mT permanent magnetic immunity, prevent contacts from being interfered by magnetic fields. And, the size is much smaller. Motorized Latch Relay Permanent Magnetic Immunity to 500mT Power Consumption:3W(80ms) Compact Design of Dimension: 29*23.5*16mm Custom assemblies available with flex wire/or copper straps, ct, and with integrated shunt RoHS compliant materials and process.

IEC62055-31 UC3 Certified with Appearance Patent Application Scenarios 1) Smart meters: IC card meters, prepaid meters, single-phase meters, three-phase meters.

2) Reactive power compensation: synchronous switch, composite switch, smart capacitor.

3) Intelligent control: smart home, solar street light control, automation equipment, etc.

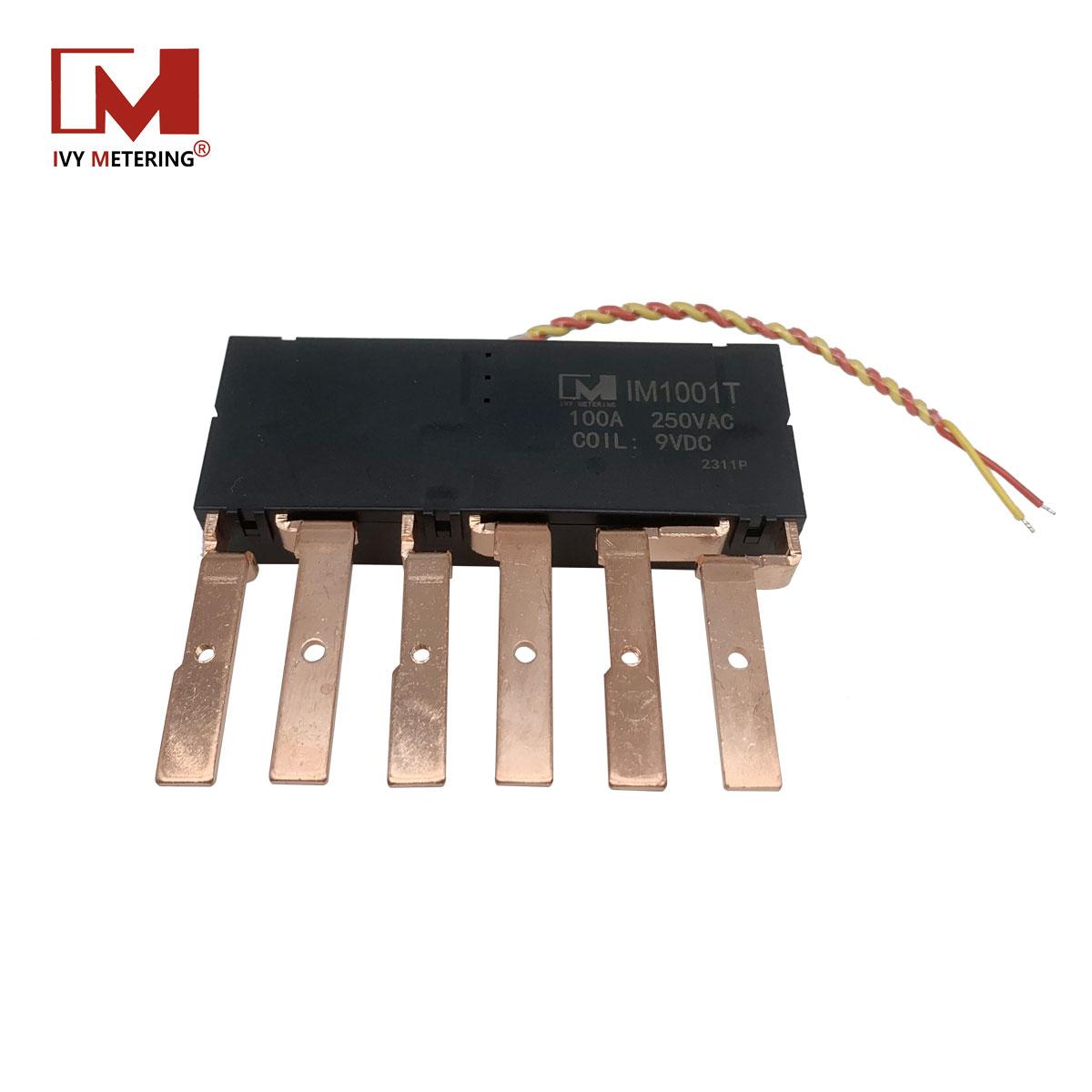

IM1001T is a 100A 3 phase latching relay built for the global metering market. This relay is able to switch 100 Amps while still maintaining a very low temperature rise. It is also available with auxiliary switch. IM1001T is ideally designed for electric meters for the global metering market. Our metering customers have been pleased with the product's performance and reliability. Given our ability to understand our customer's needs, we've been able to design, build, and test customized solutions that allow them to receive our products and plug them right into their systems without additional assembly. IM1001T is a custom 3 phase relay, it has stable performance and long service life. It's main characteristics as follows: Three poles contact, three way control, contact form: 3A/3B Maximum switching current 100A, with auxiliary switch UC3 capability as per IEC 62052-31, RoHS compliant Custom Assemblies with Shunts, CT, Flex-wire and Copper Extensions and Brass Terminals Wide Application for Energy Meter, RCCB, Power Distribution Cabinet, Ligting System, Industrial Control.

Product Parameter Rated Coil Consumption: 3.0/6.0W(30ms)

Dielectric Strength: 4kV

Compact Size: 98.6*35.5*18.8mm

Contact Material: AgSnO2 Max.

Switching Power: 25000VA

Contact Resistance; <1.0mΩ

Pick-up Time; 30ms

Release Time: 30ms

Electrical Endurance; 10000 Cycles

Mechanical Endurance; 100000 Cycles

Temp.Rise; ≦55k Ambient Temperature: -40℃~70℃

Ambient Humidity; 5%~98%RH
