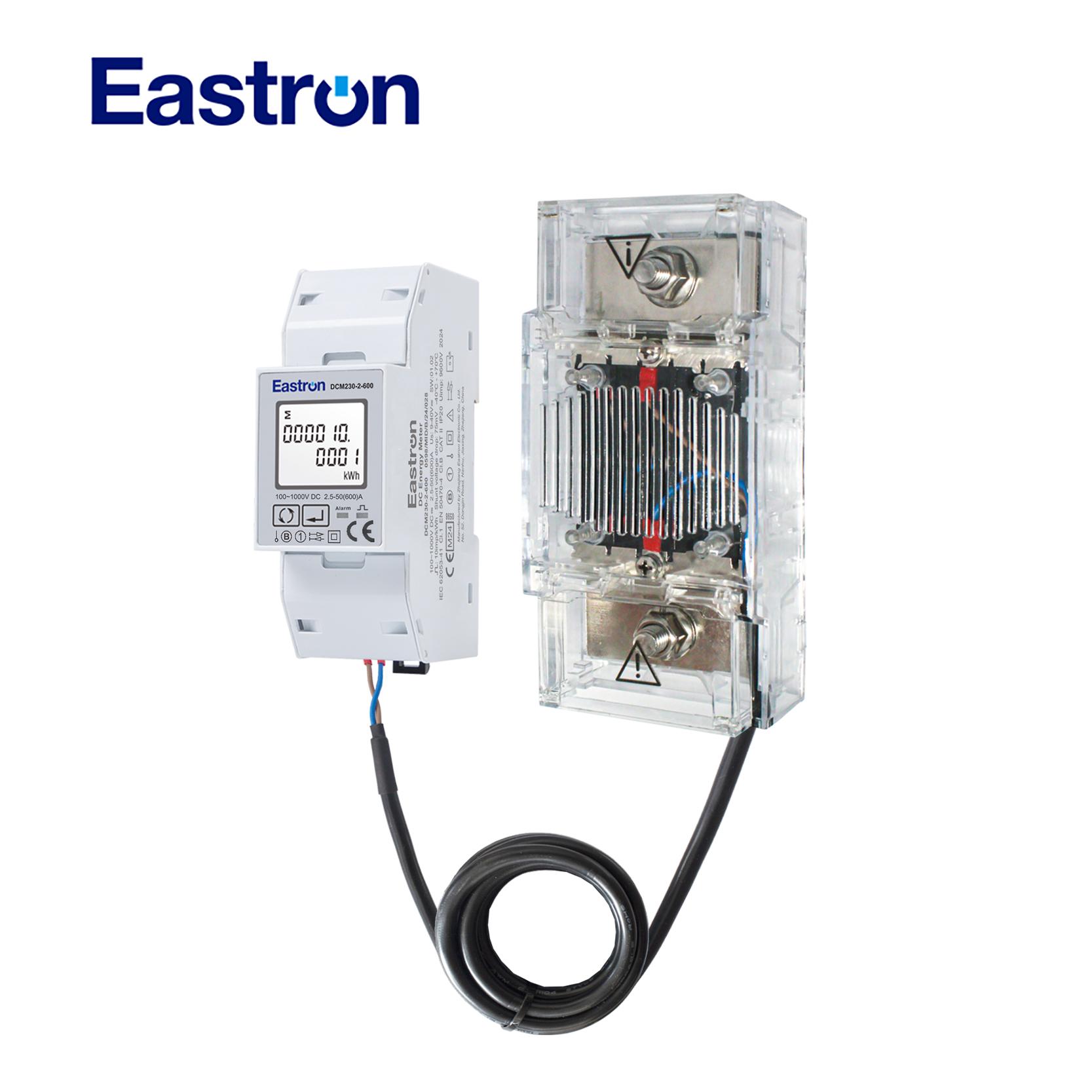

Eastron DCM230-2 series DC energy meters are designed for measuring and monitoring in DC system. The din rail DC energy meters can measure of important DC parameters: voltage, current, power and energy etc. It also support bi-directional measurement with pulse output. All data in the meter are accessible via RA485 using Modbus RTU.

DCM230-2 series works with DC power supply. Input voltage range up to 1000V DC, and current input are flexible with DC shunt.

DCM230-2 series have been assessed and certified as meeting the requirements of EU Directive 2014/32/EU. Comply with the standard EN50470-4 and IEC62053-41.

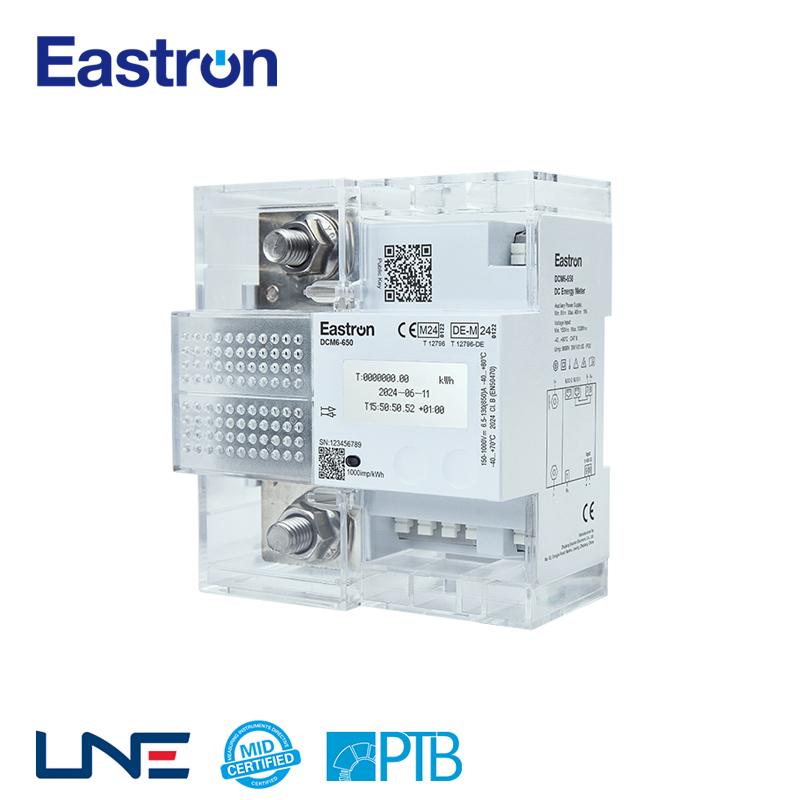

The DCM6 Series is a DC electricity meter for measurement within an e-mobilty charging station. It has a dedicated microcontroller for crypto function in order to comply with Eichrecht. Furthermore, all charging processes are stored within the internal data storage of the meter. The Eichrecht Measurement and Calibration Act, which is an amendment to Measuring and Verification Act (Mess und Eichgesetz/ MessEG) and the Measuring and Verification Ordinance (Mess- und Eichverordnung / MessEV is the solution giving the user transparency for detailed billing for each charging event.

The SDM120-M is a RS485 Modbus Din Rail Single Phase Multi-function Energy Meter. It measures active energy, reactive energy, current, voltage, power, power factor, frequency, etc. The units support Max. 45A direct connection, saving the cost and avoiding the trouble to connect external CTs. Two pulse outputs and 1 communication port (RS485 Modbus/DLT645) are provided for remote monitoring and setting, suitable for monitoring energy consumption in residential, solar PV, EV Charging system, industrial and utility applications.

The SDM54 is a MID 3 Modules Din Rail Three Phase Direct Multi-function Meter. It measures and displays the characteristics of single phase two wires (1p2w) and three phase four wires(3p4w) supplies, including voltage, frequency, current, power, power factor, active and reactive energy, imported or exported. Energy is measured in terms of kWh and kVArh. Maximum demand on power and current can be measured over preset periods of up to 60 minutes, mini in size (54mm width) , popular with three phase EV Charging system applications.

The unit has been approved to meet the requirements of EU Directive 2014/32/EU.

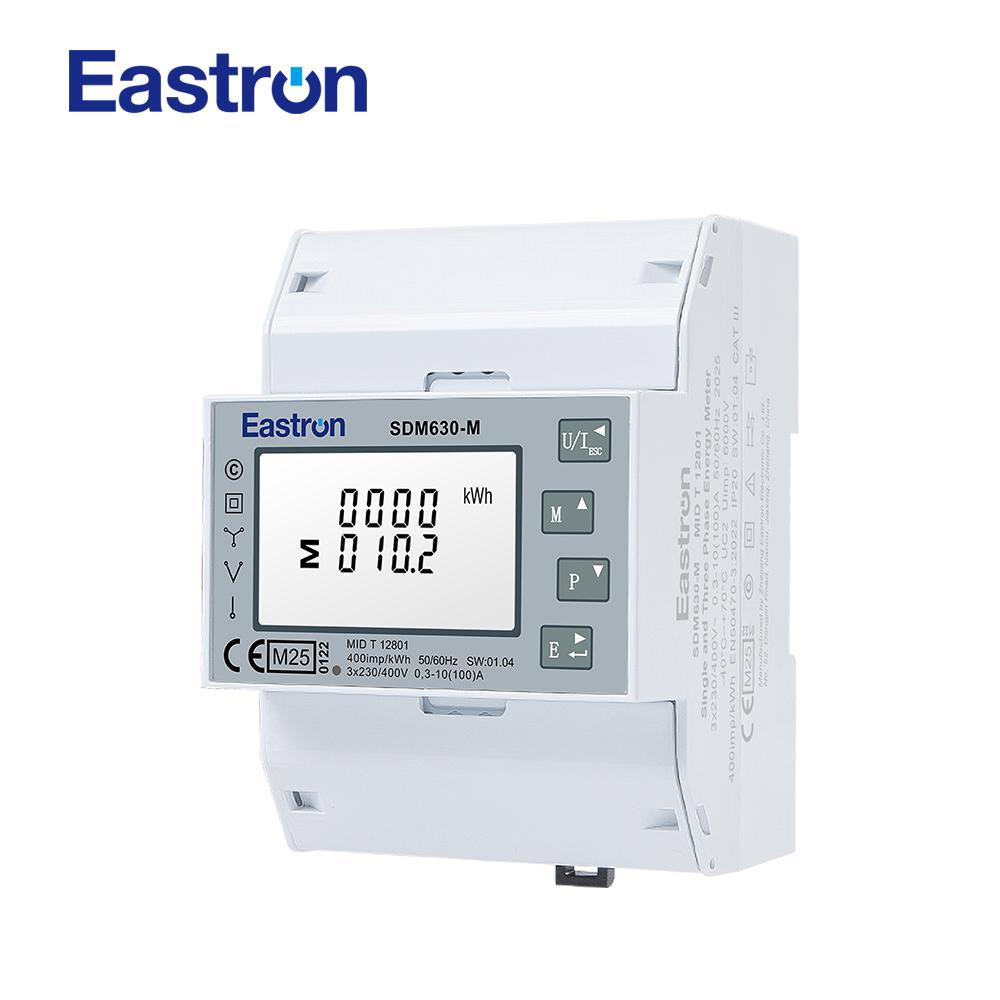

SDM630-M is RS485 Modbus 100A Din Rail Three Phase MID Energy Meter.

The unit can measure and display the characteristics of single phase two wires (1p2w), three phase three wires (3p3w) and three phase four wires(3p4w) supplies, including voltage, frequency, current, power ,active and reactive energy, imported or exported. Energy is measured in terms of kWh, kVArh. Maximum demand current can be measured over preset periods of up to 60 minutes. In order to measure energy, the unit requires voltage and current inputs in addition to the supply required to power the product.

SDM630-M supports Max. 100A direct connection, saves the cost and avoid the trouble to connect external CTs, giving the unit a cost-effective and easy operation. Built-in interfaces provides pulse and RS485 Modbus RTU outputs. Configuration is password protected.

The meter is widely used in applications like EV Charger, Solar inverter, etc. It has been assessed and certified as meeting the requirements of EU Directive 2014/32/EU.

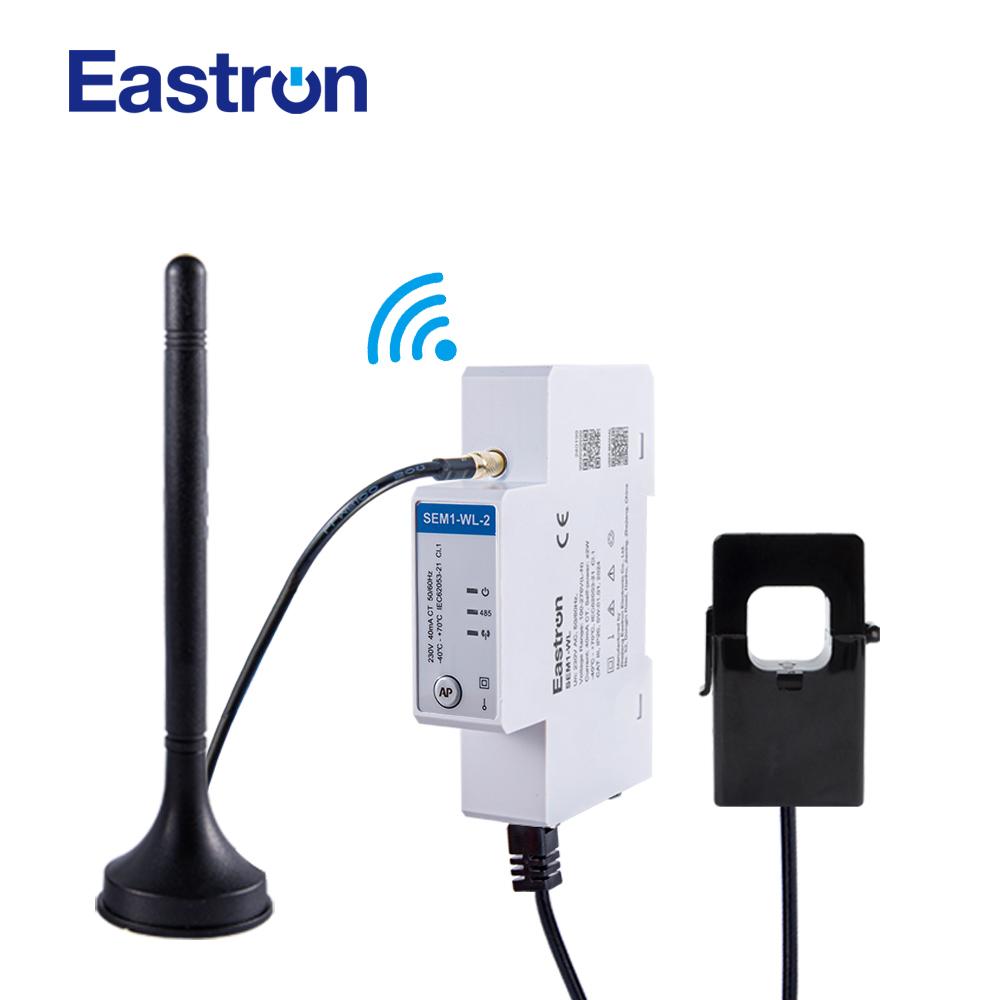

Eastron SEM1-WL-2 is a new generation din rail mounted energy meter, equipped with Wi-Fi and RS485 connectivity.

With multi parameters measurement, SEM1-WL-2 can be used for energy monitoring of various applications, such as solar PV system, smart building, industrial equipment, etc.

Eastron SEM1-WL-2 measures characteristics of 1P2W network, including voltage, frequency, current, power and active and reactive energy, imported or exported, power factor etc. Energy is measured in terms of kWh and kVArh.

Eastron SEM1-WL-2 is designed in compact size. To save installation and maintenance cost, all terminals of SEM1-WL-2 adopt spring terminals or RJ terminals for easy connection.

The measurement mode of SEM1-WL-2 is total mode. In total mode, import and export energy will be measured separately. Total energy equals to import energy plus export energy.

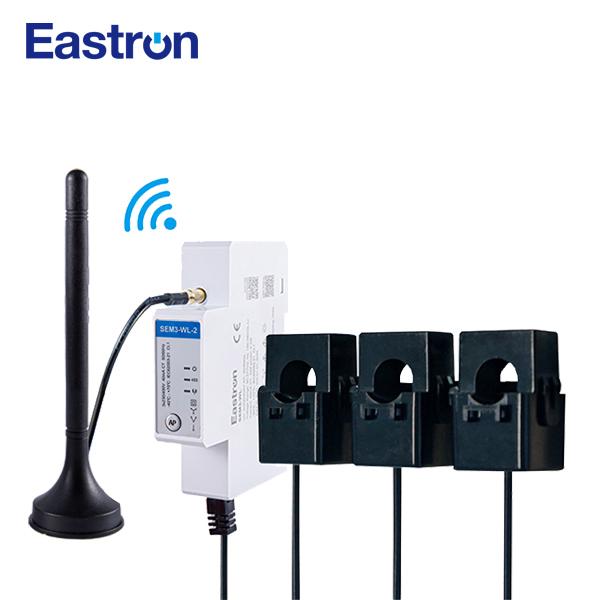

Eastron SEM3-WL-2 is a new generation din rail mounted energy meter, equipped with Wi-Fi and RS485 connectivity. With multi parameters measurement, SEM3-WL-2 can be used for energy monitoring of various applications, such as solar PV system, smart building, industrial equipment, etc. The meter can be used as 1x 3phase energy meter or 3 individual single phase energy meter. In single phase mode, 3 external CTs can be set with different CT ratio for three independent loads.

Eastron SEM3-WL-2 measures characteristics of 1P2W, 3P4W and 3P3W supplies, including voltage, frequency, current, power and active and reactive energy, imported or exported, power factor, etc. Energy is measured in terms of kWh and kVArh.

Eastron SEM3-WL-2 has phase sequence automatic detection and alarm function. If the phase sequence is reversed, the meter will issue an alarm. The phase sequence can be adjusted through communication.

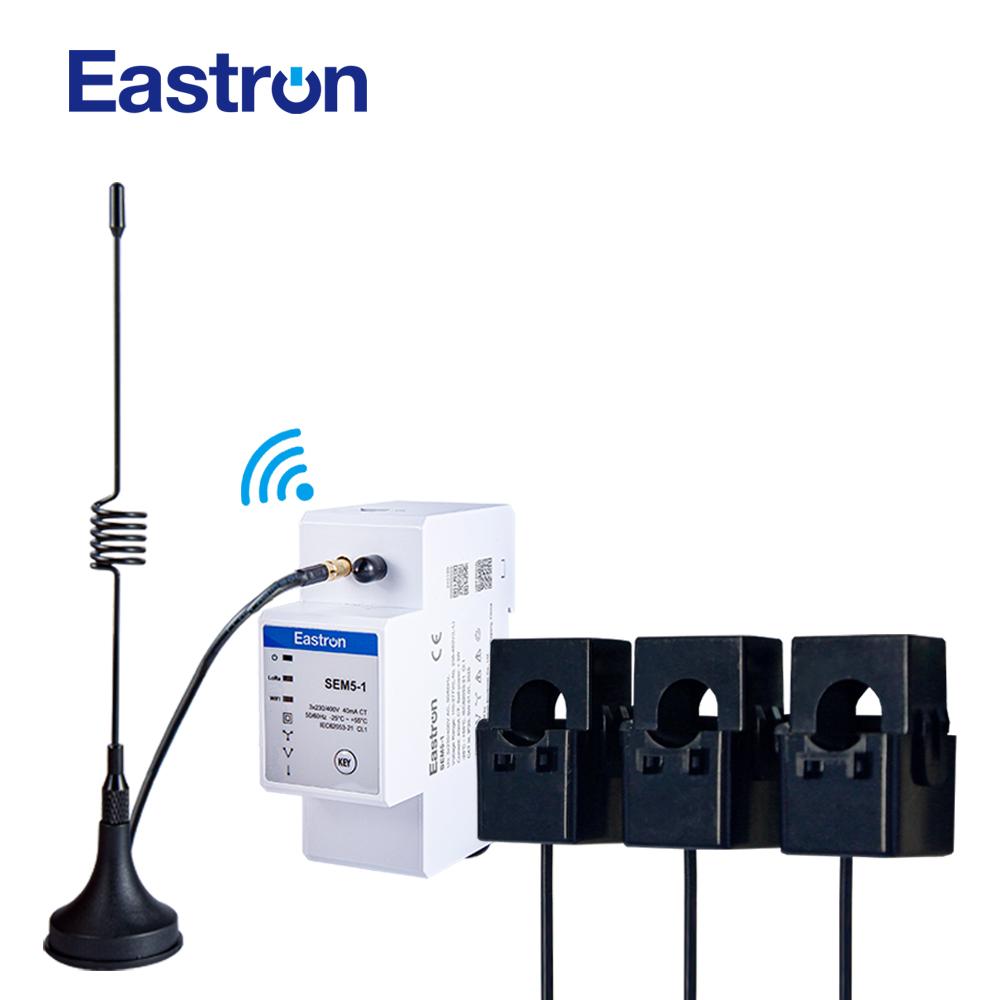

The SEM5-1 is the new generation of intelligent DIN rail mounted meters by Eastron. It integrates Wi-Fi & Lora communication. With multi parameters

measurement, SEM5-1 wireless energy meter can be used for energy monitoring of various applications, such as PV energy management, smart building, industrial equipment, etc. The meter can be used as 1x 3phase energy meter or 3x single phase energy meter.

Eastron SEM5-1 wireless energy meter measures the characteristics of 1P2W, 3P4W and 3P3W supplies, including voltage, frequency, current, power and active and reactive energy, imported or exported, power factor, Max. demand etc. Energy is measured in terms of kWh, kVArh and kVAh.

Eastron SEM5-1 wireless energy meter is designed in compact size. To save installation and maintenance cost, all terminals of SEM5-1 wireless energy meter adopt spring terminals or RJ terminals for easy connection.

Eastron SEM5-1 wireless energy meter provides two measurement modes: Total mode and PV mode. In total mode, import and export energy will be measured separately. In PV mode, import and export energy will be balanced first, and the balanced value will be counted in import or export energy.

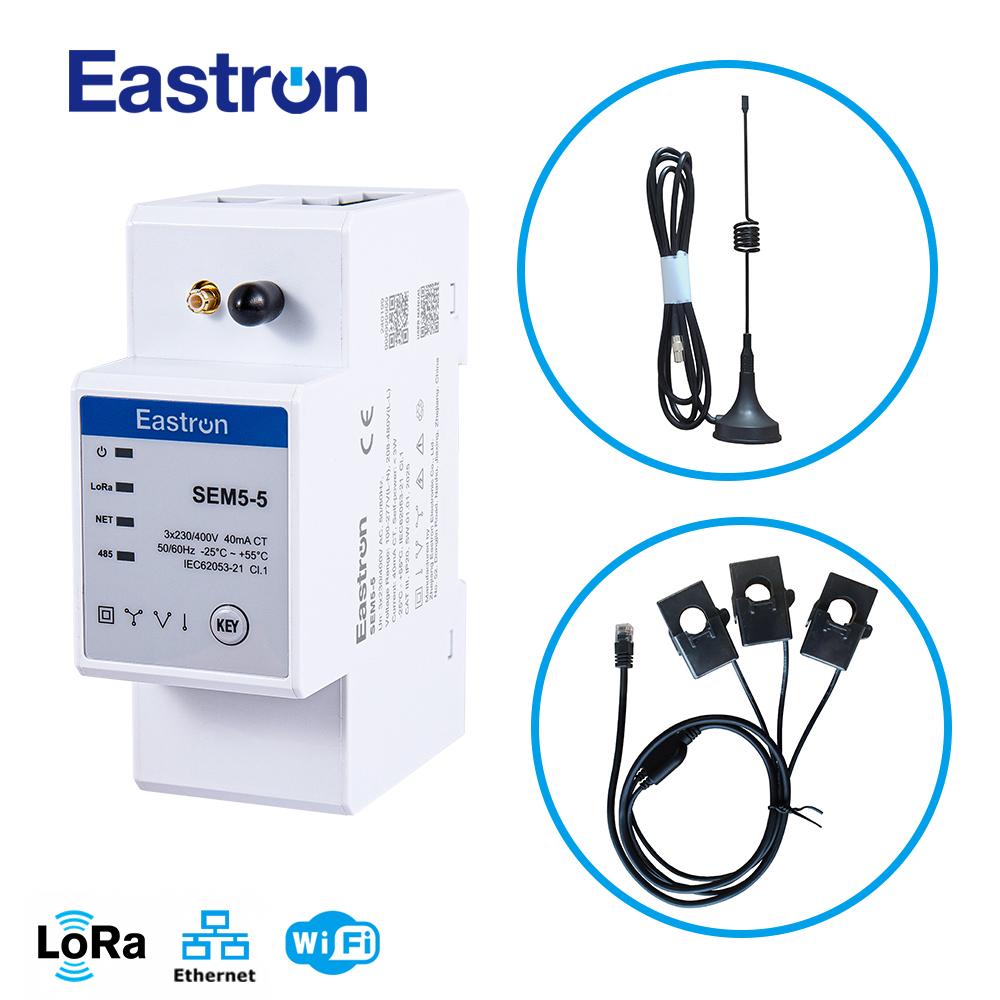

The SEM5-5 is the new generation of intelligent DIN rail mounted meters by Eastron. The product integrates Wi-Fi & Lora & RS485 Modbus communication. In addition, the SEM5-5 wireless energy meter also supports Ethernet Modbus TCP communication. With multi parameters measurement, SEM5-5 wireless energy meter can be used for energy monitoring of various applications, such as PV energy management, smart building, industrial equipment, etc. The meter can be used as 1x 3phase energy meter or 3x single phase energy meter.

Eastron SEM5-5 wireless energy meter measures the characteristics of 1P2W, 3P4W and 3P3W supplies, including voltage, frequency, current, power and active and reactive energy, imported or exported, power factor, Max. demand etc. Energy is measured in terms of kWh, kVArh and kVAh.

Eastron SEM5-5 wireless energy meter is designed in compact size. To save installation and maintenance cost, all terminals of SEM5-5 wireless energy meter adopt spring terminals or RJ terminals for easy connection.

Eastron SEM5-5 wireless energy meter provides two measurement modes: Total mode and PV mode. In total mode, import and export energy will be measured separately. In PV mode, import and export energy will be balanced first, and the balanced value will be counted in import or export energy.

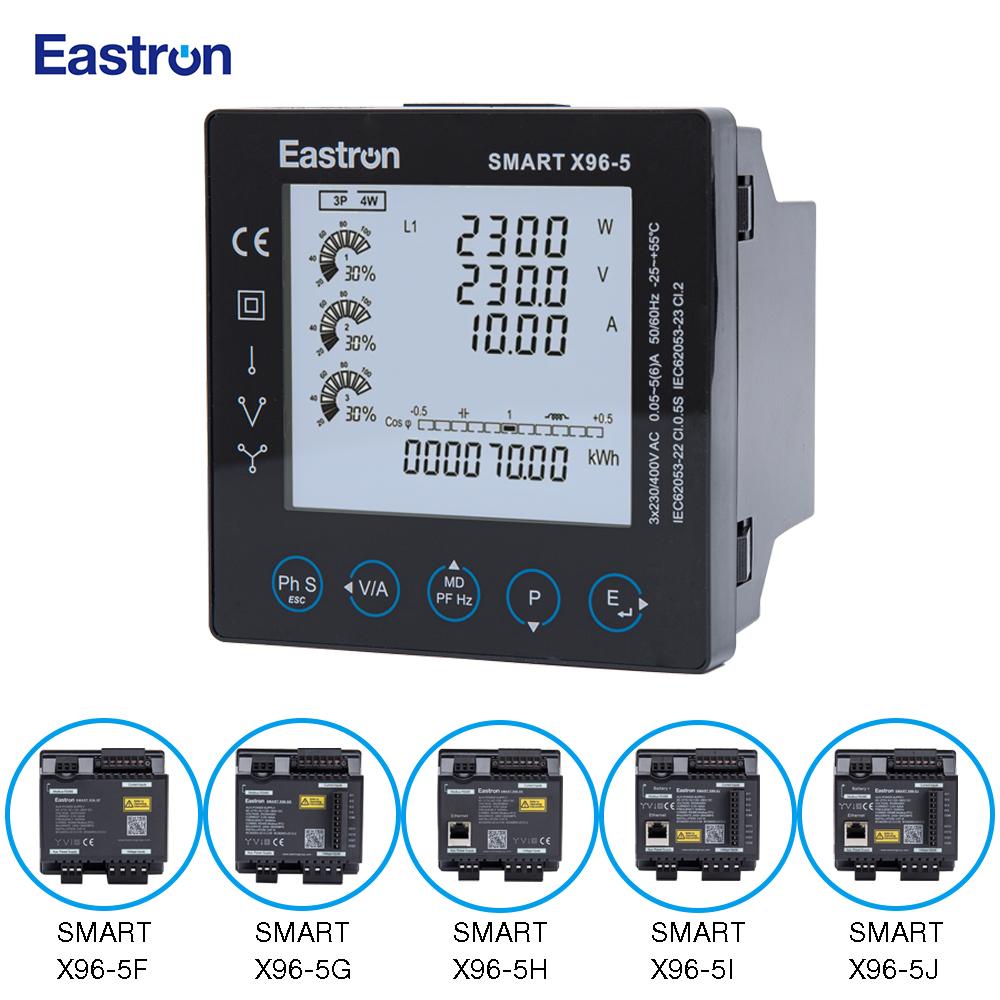

The multifunction energy analyzer SMART X96 series is a high end new-generation intelligent panel meter, used not only in electricity transmission and power distribution systems, but also for power consumption measurements and to analyze high voltage intelligent power grids.

The unit measures and displays the characteristics of 1p2w,3p4w and 3p3w supplies, including voltage, frequency, current, power and active and reactive energy, imported or exported, harmonic, power factor, Max. demand etc. Energy is measured in terms of kWh, kVArh and kVAh. Maximum demand current can be measured over preset periods of up to 60minutes.

In order to measure energy, the unit requires voltage and current inputs in addition to the supply required to power the product. The requisite current input(s) are obtained via current transformers. The SMART X96 can be configured to work with a wide range of CTs, giving the unit a wide range of operation. Built-in interfaces provides RS485 Modbus RTU and Ethernet TCP/IP communication. Digital input and outputs are provided for external signal counting and external device control. 30 types of parameters can be set for alarm.

The unit uses plug-in terminals for easy wiring and push-in mechanism for quick installation.
