Why fully insulated overhead designs are strengthening distribution reliability, safety, and environmental stewardship

Electric distribution systems must continually balance reliability, safety, environmental responsibility, and long-term asset performance. Automatic circuit reclosers have long supported reliability by isolating faults and restoring service after transient events. Today, utilities also face heightened expectations around improved equipment insulation, worker safety and wildlife protection, as overhead systems become more visible, more automated, and more environmentally impacted.

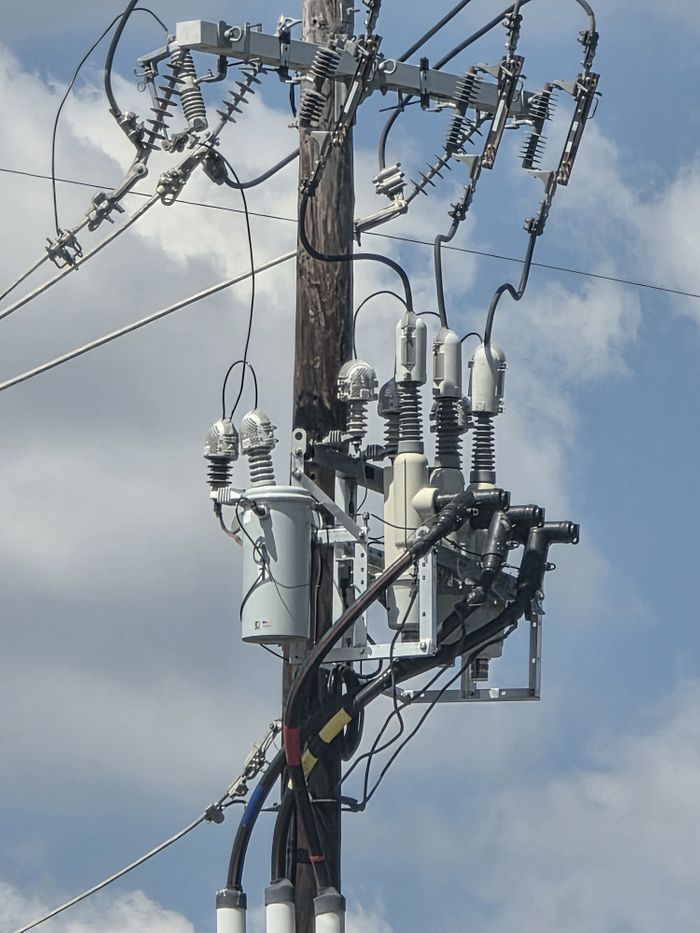

Dead-front recloser technology directly addresses these evolving needs. By fully insulating energised components, dead-front overhead reclosers help reduce equipment exposure to workers, wildlife, and environmental conditions while maintaining high protective performance.



What Dead-Front Is and What It Enables

Dead-front construction fully insulates energised components within engineered dielectric systems. When applied to overhead reclosers, this creates a contained electrical interface that fundamentally changes how equipment interacts with its surroundings.

Traditional overhead systems rely on physical spacing and clearance to manage energised components. Dead-front designs take a different approach by enclosing those interfaces, significantly reducing worker and wildlife contamination, or environmental interaction with energised components.

This approach addresses a broader issue in overhead systems. Many faults are not random; they originate from direct contact with exposed energised parts. By eliminating those external interaction points, dead-front designs shift performance from exposure-driven behavior to a more controlled operating condition.

In practical terms, this means:

• No exposed bushings or terminals

• Reduced sensitivity to contamination and environmental variability

• More consistent performance across operating conditions

This design philosophy, long established in padmount equipment, is now being applied to overhead systems where exposure has historically been more difficult to control.



Safety Implications

Dead-front construction improves safety by limiting exposure to energised components during normal operation.

The sealed design protects the internal components from moisture, dust, and debris reducing the risk of faults. With fewer accessible live surfaces, inspections can be performed with reduced interaction with energised parts, improving safety. Workers can’t touch live conductors, reducing the risk of accidental contact. This is particularly relevant in space-constrained or public-facing installations where maintaining clearances can be more challenging.

Arc flash events are limited, reducing the changes of worker injury. In addition, external lockout handles, hot-stick operation, and mechanically interlocked controls eliminate the worker’s direct access to energised parts during inspections or repairs.

These characteristics align with established work practices and do not require changes to standard operating procedures. Instead, safety improvements are achieved through the design itself, by reducing the conditions that introduce risk.



Wildlife and Environmental Considerations

Wildlife such as bird, rodent, and snake interactions remain a common source of overhead distribution faults. Animals can inadvertently bridge energised components, creating phase-to-ground or phase-to-phase faults that result in outages and repeated reclosing operations.

By enclosing energised interfaces, dead-front designs reduce the conditions that allow these interactions to occur. Instead of relying on add-on mitigation such as guards or barriers, the equipment itself limits access to energised components. This reduces both momentary and sustained interruptions associated with wildlife activity.



Standards and Applicability Considerations

Reclosers and insulated switchgear are designed with reference to established industry standards, including IEEE C37.60, IEC 62271-111, and IEEE 386.

Dead-front construction is a design approach rather than a standalone standard. Utilities should confirm applicability based on system requirements, voltage class, and local specifications.



Improved Reliability Measurements

Using standard reliability metrics, utilities can measure improvements in reliability.

• SAIFI (System Average Interruption Frequency Index) for outage frequency

• SAIDI (System Average Interruption Duration Index) for outage duration

• MAIFI (Momentary Average Interruption Frequency Index) for temporary interruptions

The most direct method is comparing worker accidents, wildlife‑ and vegetation‑related fault rates before and after deployment, normalised per circuit mile or device.



A Practical, Exposure Aware Approach to Overhead Protection

Dead front overhead reclosers support a more deliberate approach to system design, one focused on reducing exposure rather than managing its consequences.

By enclosing energised interfaces, these designs remove common external fault initiation pathways, including wildlife bridging and vegetation contact. This shifts system behavior from exposure-driven variability to a more controlled and predictable operating condition.

This change extends beyond fault occurrence and directly influences standard reliability metrics. A reduction in wildlife- and vegetation-related faults translates to fewer sustained interruptions, improving SAIFI (System Average Interruption Frequency Index) and, in many cases, reducing overall outage duration reflected in SAIDI (System Average Interruption Duration Index). At the same time, fewer transient fault events and reclosing operations can contribute to improvements in MAIFI (Momentary Average Interruption Frequency Index). Because many of these events drive repeated operations and restoration cycles, reducing their frequency can also stabilize CAIDI (Customer Average Interruption Duration Index) by limiting variability in restoration time.

These impacts can be measured. Utilities can quantify reductions in wildlife- and vegetation-related faults by comparing cause-coded data before and after deployment, normalised as faults per device-year and segmented by conditions such as season or storm activity. Where post-install history is limited, avoided faults can be estimated by applying historical fault rates to the installed population and comparing expected and observed results.

The result is a measurable reduction in event frequency and its downstream impact on reliability indices, not just an assumption of improved safety or performance. As utilities continue to strengthen their distribution systems, designs that reduce environmental interaction at the source, without altering protective function, provide a practical path to improving reliability, safety, and long-term system performance.
