ThermaCross®
)
)
)
)
)
)

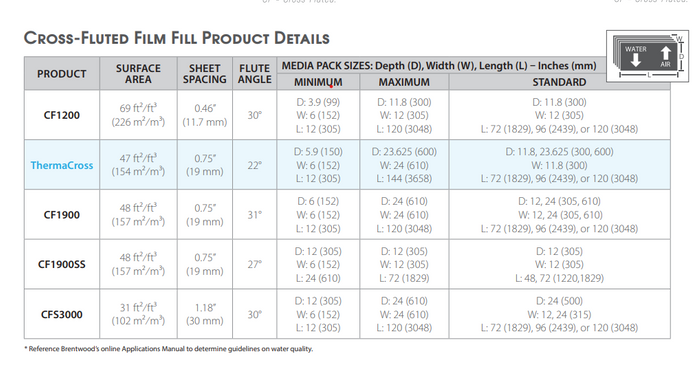

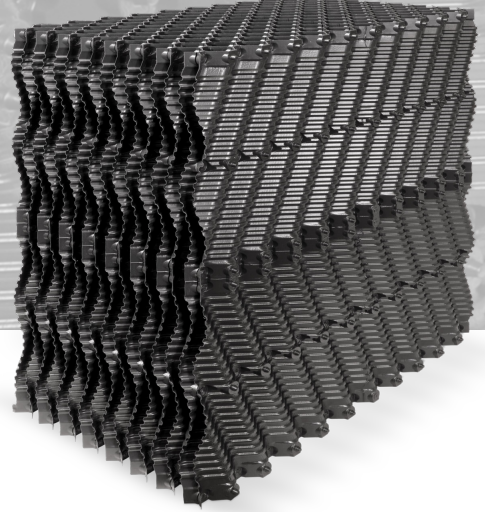

ThermaCross Film Fill Brentwood’s ThermaCross Film Fill is designed to optimize thermal performance and pressure drop better than existing 19mm-spaced products. At higher fill heights, it can match the performance of 12mm-spaced, high efficiency fills. ThermaCross achieves this level of efficiency by utilizing a patent-pending MicroBoost™ design to maximize the airwater interface, setting a new standard for cross-fluted, high-efficiency film fills.

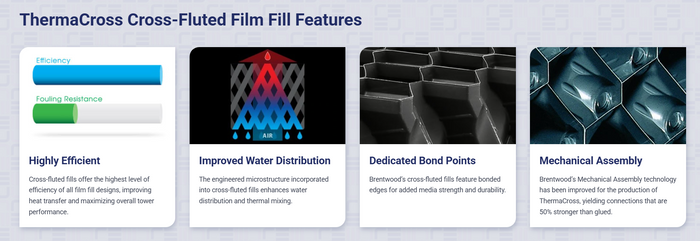

Features
• MicroBoost™ design maximizes the air-water interface for increased thermal capacity
• Solvent welded or mechanically assembled and available with AccuShield and EcoChoice technologies
• Designed for use in nearly any clean water application, such as data centers, HVAC, district cooling, and treated industrial processes that use a standard 19mm crossfluted product
• Available in material meeting Cooling Technology Institute (CTI) Standard 136
