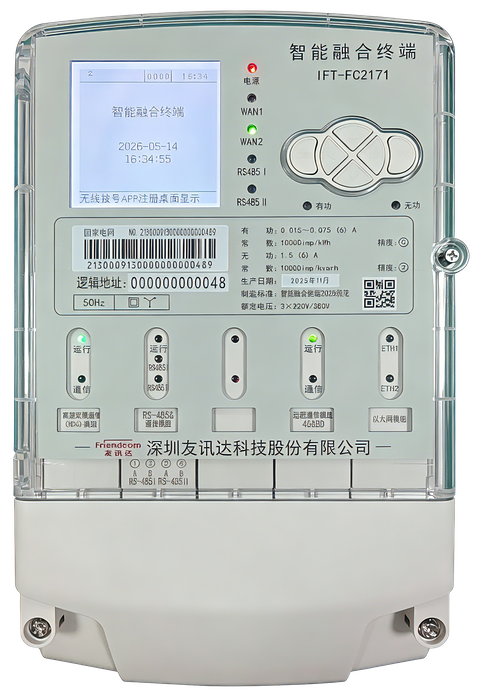

Intelligent Fusion Terminal
)
)
)
)
)
)
The FC2171 intelligent fusion terminal (IFT) functions as an edge IoT gateway for low-voltage distribution zones, following the principle of “one terminal per power distribution zone, one channel per key.” Taking the distribution zone as the smallest management unit, it deeply integrates distributed edge computing and IoT communication technologies to provide comprehensive, real-time monitoring and measurement of low-voltage distribution zones
Key Feature
1. Industrial-grade multicore processor running at 1.2 GHz provides strong computing performance.
2. Decoupled hardware–software architecture with edge-computing support; application software is delivered as apps, enabling flexible function customization.
3. High-capacity storage design ensures fast, secure handling of large data volumes.
4. Industrial-grade wide-range power supply, suitable for harsh environments featuring high temperature, high voltage, high salinity, and strong electromagnetic fields.
5. Supports minute-level data collection with a single-scan success rate above 99.5%.
6. Supports data acquisition in large distribution zones, able to handle up to 2,048 electricity meters.
7. Compatible with multiple standard functional modules to support comprehensive application scenarios.
Categories
- AMI
- Microgrids
