Product Overview:

Name: InGateway502 (IG502) IoT Edge Gateway.

Function: Connects industrial devices to the cloud, performing data acquisition, validation, preprocessing, and upload.

Key Selling Point: Configuration takes "only a few minutes without any programming."

Award: "Honorable Mention" in the Control Engineering 2022 Engineers' Choice Awards.

Advantages / Key Features:

Powerful Edge Computing:

Processor: ARM Cortex-A8 @ 600MHz.

Memory: 512MB RAM.

Storage: 8GB eMMC Flash.

Rapid Configuration (DeviceSupervisor™ Agent):

Supported Industrial Protocols: Modbus TCP/RTU, EtherNet/IP, ISO on TCP, OPC UA Client.

Supported IoT Clouds: AWS, Microsoft Azure, etc.

Easy setup requiring minimal IT knowledge.

Reliable Communications:

Dual SIM support with carrier failover.

Embedded watchdog for auto-recovery.

Auto-link detection mechanism.

Extensive Interfaces:

Ethernet: 2x 10/100Mbps ports (configurable as 1 WAN + 1 LAN or 2 LAN).

Serial: 1x RS232 + 1x RS485 OR 2x RS485 (industrial terminal block).

I/O (Optional): 4x Digital Input (DI), 4x Digital Output (DO), supports pulse I/O.

Wireless (Optional): Wi-Fi, GPS.

Industrial Design:

Operating Temp: -20°C to 70°C.

Input Voltage: 12-48VDC.

Protection: IP30 rating, EMC Level 3.

Remote Management (Device Manager):

Web interface access.

Remote monitoring and management.

Batch configuration capability.

Networking Scheme (Illustration Description):

Shows the IG502 connecting various industrial devices (Pressure Pumps, Robots, Air Compressors) using different protocols (Modbus, OPC UA) to PLCs/controllers (Rockwell, Siemens, Omron, etc.).

Highlights the gateway's "Multiple Interfaces" and "Data Pre-processing" capabilities before data is sent to the cloud or handled by "Python Programming" processes.

Applications (Use Cases):

Industrial Robots: Collects high-speed data (100ms-200ms intervals) from robotic arms, enabling edge filtering/pre-processing for real-time data using its 8GB Flash and 512MB RAM.

Air Compressors: Collects variables (pressure, temperature) from controllers for real-time cloud upload and centralized monitoring. Enables remote upgrading/debugging to improve efficiency and reduce downtime.

IVD Medical Devices: Receives data via LAN ports. Performs local processing to avoid cloud overload. Continuously monitors device status for timely preventive maintenance.

Sewage Disposal Works: Collects real-time PLC/HMI data for cloud upload, enabling constant condition viewing and centralized management. Facilitates timely fault alarm handling for proper maintenance and service.

Product Identification & Certification:

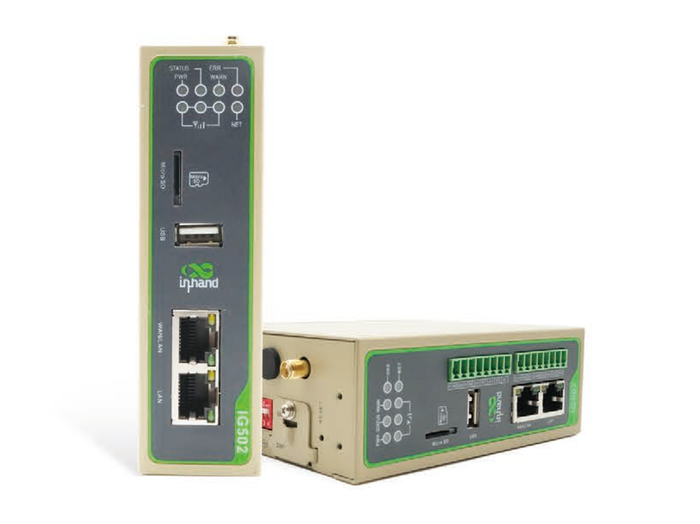

Clearly labeled as "IG502 IoT Edge Gateway".

Mention of certifications: "ICE FC PTCRB" (indicating regulatory approvals).

Manufacturer Information:

Company: InHand Networks.

Website: www.inhandnetworks.com

US Office Address: 43671 Trade Center Place, Suite 100, Dulles, VA 20166, USA.

Contact: T: +1 (703) 348-2988 | E: info@inhandnetworks.com
