Product Overview:

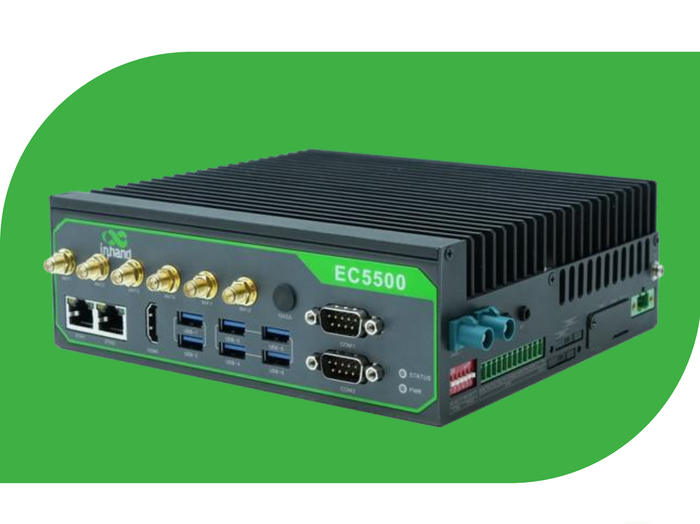

Name: EC5000 Series AI Edge Computer

Core: Pre-integrated NVIDIA® Jetson Orin NX™ or Orin Nano™ modules.

Positioning: Designed for industrial AI applications and digitalization.

Key Attributes: High security, High reliability, Cloud-Managed.

Key Features & Advantages:

Performance & Platform:

Supports NVIDIA Jetson Orin Nano/NX Series.

Enables customer development/installation of edge applications.

Supports Docker and Jetpack 5.1+.

Rich Interfaces:

Networking: 2x 10/100/1000Mbps Ethernet.

Display: 1x HDMI 2.0.

USB: 6x USB 3.2 Gen 2, 1x OTG Type-C.

Serial: 2x RS-232/RS-485/RS-422 (DB9).

I/O: 4x DI, 4x DO.

CAN: 1x CAN FD.

Expansion: M.2 B-Key (LTE/5G), M.2 E-Key (Wi-Fi/BT), M.2 M-Key (Storage), MicroSD slot.

Optional: GMSL 2.0, Microphone, Audio Line-out.

Stable Communication:

Multi-mode: 5G/4G/Wi-Fi/PoE.

Redundancy: Wired/cellular/Wi-Fi backup, dual SIM failover.

Reliability: Independent HW/SW watchdogs, multi-level link detection/self-healing, fanless design.

High-level Security:

Integrated TPM 2.0 chip.

Linux security patches and vulnerability remediation.

DeviceSupervisor™ Agent Service (DSA - Optional Software):

Zero-code data acquisition from 80+ industrial protocols (Modbus, EtherNet/IP, OPC UA, etc.).

Data preprocessing.

Integrated data publishing to cloud/SCADA.

InHand DeviceLive Cloud Service:

Remote device access & batch management.

Remote management of edge AI applications & containers.

Dimensions & Mechanical:

Size: 180x160x60 mm.

Housing: Metal.

Installation: DIN-rail & Wall mounting.

Protection: IP30 rating.

Operating Temp: -20°C to 60°C.

Power: DC 9~36V (polarity protection), Idle ~10W, Max ~60W.

Hardware Specifications (Detailed Table):

Platform Options: EC5550 (Orin NX 16GB RAM) / EC5350 (Orin Nano 8GB RAM).

CPU/GPU: ARM Cortex-A78AE cores, NVIDIA Ampere GPU w/ Tensor Cores.

AI Perf: 40 TOPS (NX) / 10 TOPS (Nano).

Storage: 128GB built-in M.2 SSD + MicroSD slot.

Connectivity: Detailed specs for GPS, Wi-Fi (RTK 8822CE), Buttons (Recovery/Reset), SIM slots (2x).

EMC/Environmental Compliance: Meets EN61000 standards for ESD, surge, immunity, vibration, shock. Wide humidity tolerance (5-95% non-condensing).

Software Specifications:

OS: Linux (Jetpack 5.0+).

Network: 5G/LTE models available (detailed band support in ordering guide), dual SIM backup.

Reliability: Multi-level link detection/auto-redial, embedded watchdog for self-recovery.

Data Acquisition (DSA Protocol Support): Extensive list including Modbus RTU/TCP, EtherNet/IP, OPC UA, DNP3.0, IEC 60870-5-101/104, BACnet, Mitsubishi protocols, etc.

Management:

Upgrade: Local/remote firmware.

Logging: Local/remote with power-off preservation.

Remote Access: DeviceLive, HTTP/HTTPS, SSH.

Applications & Solutions:

Highlighted Sectors: Smart Energy, Smart Healthcare, Smart Manufacturing, Public Services.

Use Cases: Real-time monitoring/control, resource management, medical service improvement, efficiency enhancement.

Ordering Guide (Model Variants):

EC5550-NRQ3: Orin NX 16GB, Global 5G NR/LTE

EC5350-NRQ3: Orin Nano 8GB, Global 5G NR/LTE

EC5550-FQ09: Orin NX 16GB, Global 4G CAT6

EC5350-FQ09: Orin Nano 8GB, Global 4G CAT6

EC5550-EN00: Orin NX 16GB, No Cellular

EC5350-EN00: Orin Nano 8GB, No Cellular

Manufacturer Information:

Company: InHand Networks (founded 2001).

Focus: Industrial IoT solutions for digital transformation (Manufacturing, Energy, Transportation, Retail).

Global Presence: Over 60 countries.

US Office: 3650 Concorde Pkwy, Suite 200, Chantilly, VA 20151.

Contact: T: +1 (703) 348-2988 | E: info@inhand.com | www.inhand.co
